Description
Parameter introduction:
portNo---------------Serial port number, the default value is 1, ie COM1, please note that it should not be greater than 9
Baud rate-----------Baud rate, the default is 9600
Parity check---------Whether to perform parity check,'Y' means parity check is required,'N' means parity check is not required
databits-------------Data bits, the default value is 8 data bits
stopbits -------------Stop bit format, the default value is 1
dwCommEvents-----The default value is EV_RXCHAR, that is, as long as any character is sent and received, an event will be generated

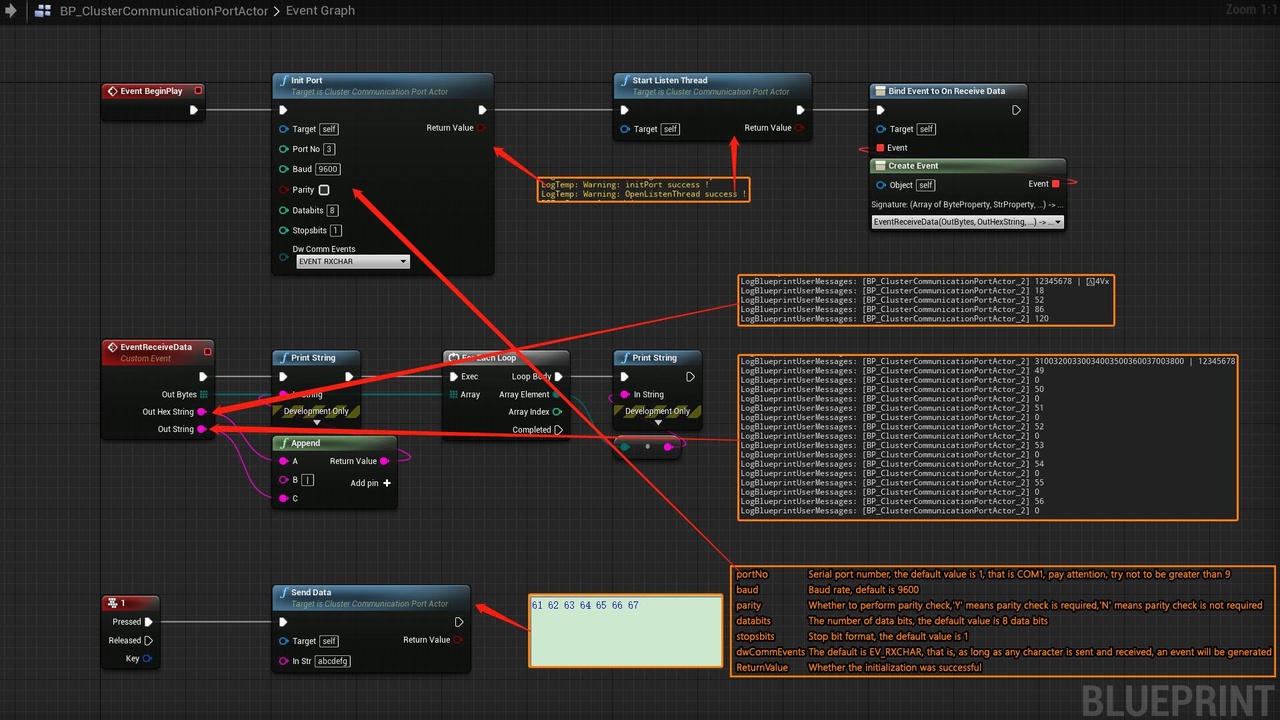

Open the Content Browser window, in the upper right corner of the Content Browser, click the Settings button, This will open a menu where you can adjust various settings for the current instance of the Content Browser, Under the View category, check the Show Plugin Content option, Find the Cluster Communication Port->Content->Cluster Communication Port directory, There are sample levels and related assets inside.
Change log : (2021/05)
Fixed a crash bug when calling the interface too frequently in some small probability situations.
Change log : (2021/02)
4.26 version:
Added ClosePort function
Added IsPortOpen function
Added StopListenThread function
Added enumeration to control RTS and DTR variables.
Change log : (2020/12)
Support 4.26 version
Change log : (2020/11)
Add hexadecimal data interface--SendDataByHex
